Spray 36 "Uvea"
Seen here sailing off the Loyalties Islands

Roberts Spray 33 "Taranea Spray" was built during 1989-97 (approx 7500 h.) by Hans Jurgen Hoernicke

"Taranea Spray" was built during 1989-97 (approx 7500 h.) by me, Hans Jurgen Hoernicke in Västerås, Sweden. We sailed her for the first time in 1998 and all I can say is that Spray 36 was the right choice. Last summer we travelled from Stockholm, Sweden to Hamburg, Germany. Her balance is fantastic, we are very satisfied."
Regards, Hans Jurgen Hoernicke.

Another fine example of a Roberts Spray 33

Another fine example of a Roberts Spray 33 - 02

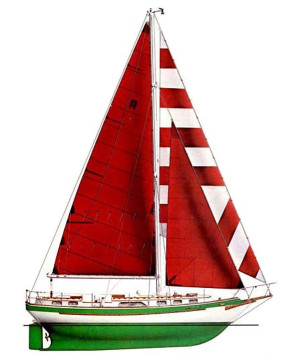

Roberts Spray 36

Many of this design are currently in service worldwide. One of the reasons for the popularity of this Spray is due to the spacious interior - much more interior living area than other boats of the same length, and you can choose from several deck and accommodation layouts - a centre cockpit, trunk cabin, aft cockpit pilot house or a poop stern centre cockpit with pilot house.

You can choose to build this design in multi chine steel, aluminum or wood epoxy or as a round bilge fibreglass version (Airex or C-Flex). Sail plans are available to rig this design as a Bermudan or Gaff rigged Cutter or as a Ketch.

The study plan package has details on all the different construction techniques and includes materials lists, as well all as the sail plans and the accommodation layouts to scale.

L.O.A.	12.10 m	39' 7"
L.O.D.	11.20 m	36' 10"
L.W.L.	9.20 m	30' 0"
BEAM	3.66 m	12' 0"
DRAFT	1.22 m	4' 0"
DISPLACEMENT	11,053 kg	24,400 lb
BALLAST	3,805 kg	8,400 lb
AUX PWR		20 - 33 hp
