Building the hull

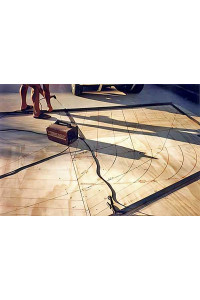

The full size patterns have been transferred onto a level plywood base.



A frame being made to the pattern



All the frames stood and stringers notched in.



The radius plates rolled to the correct radius before fitting to the framework.



Fitting the radius chine plates



The radius chine plates being tacked into position.



The top side plates being added



The bottom plates tacked on to complete the hull body





Turning the hull



Rolling the hull upright



Nearly there



Making sure that the hull is sitting level



The R 482 hull



Inside looking forward



Inside looking aft



Installing the ballast. 5500 kgs of cast iron heater bricks





 The Deck

Stainless steel P bracket, bearing holder and prop tube.



And a stainless steel bow roller



Transom with built in swim platform. Coach house framing going up.



A well designed wheelhouse.



Internal framework
