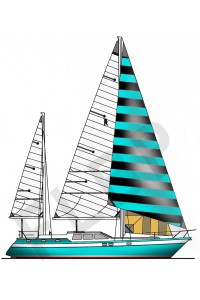

Bruce Roberts sailboat designs & boat plans.
40 - 65 ft



This section of Bruce Roberts sailboat designs and boat plans cover the following vessels in the range of 40 to 65 foot. The Classic, Henry Morgan, Offshore, Mauritius/Norfolk, Power Cat, New York, Trader and many more.  Boat building plans using steel, aluminium, fiberglass & wood/epoxy, depending on the design, are available. Information and prices are on each individual design page.

Study Plan Packages contain all the sheets #1 from the actual plans. Sail Plans and the various accommodation layouts pertaining to the design are shown on these sheets. There may be anywhere from two to eight #1 sheets which are all to scale and which measure between one meter and two and a half meters long each. They are intended as a more in-depth overview of the design in which you are interested.

Material Lists for the basic materials required to build the hull, deck and superstructure are included in the study plan package to help you with your budgeting. Where Fibreglass is mentioned as a material this means Balsa sandwich / Foam sandwich, Single skin or C-Flex. Most steel plans can be adapted to aluminium construction. Both moulded ply and strip plank can be used in conjunction with the wood epoxy saturation method. Sail and rig details are also shown on the study plan sets.

As the Study Plan Packages include the basic measurements in scale for the accommodation layouts, you can customize the layouts to suit your needs if what is presented is not exactly to your liking.

The link to download the Study Plan Packages is emailed to your email address and generally within 24 hours, The link to the Full Plan Sets is also generally emailed within 24. All study plans and full plan sets are downloadable in .pdf format for you to have printed at a nearby print shop. The study and full plan sets are available on CD's on request with postage cost depends on country.

To View drawings, photos, information and prices of the design that interests you just click on that design.

For your information: You do not need a PayPal account to use a credit card securely on line with PayPal - Just select 'Credit Card Payment' on the link.


Product Compare (0)


Pram Dinghy

Pram Dinghy

 This Pram dinghy can be built in fibreglass or plywood. The pictures show one made..

$20.00

Roberts 40

Roberts 40

    This design comes with either a centre cockpit or a pilot house layout. The..

Mauritius / Norfolk 43

Mauritius / Norfolk 43

 The Mauritius 43 and Norfolk 43 plans were first drawn in 1969 and have been one of our mos..

Mauritius / Norfolk 43 Rudder Modification

Mauritius / Norfolk 43 Rudder Modification

"Kupere" Airlie Beach 12/04/99 Dear Phil Firstly many, many thanks for your help, etc over an ..

$20.00

Roberts 432

Roberts 432

 This design was drawn to replaced the earlier Mauritius 43 and Norfolk 43 plans. These earl..

Roberts 434

Roberts 434

 This design has appealed to many serious cruising sailors, and is another in the latest ran..

Offshore 44

Offshore 44

 This design has appealed to many serious cruising sailors, and is a timeless example of a w..

Classic 45

Classic 45

 The Classic 45 is the long keel version of the R45. With ample room to carry 800lts of wate..

Roberts 45

Roberts 45

 This cruising boat has been built as a production boat in many countries in the world. The ..

Showing 1 to 9 of 21 (3 Pages)
