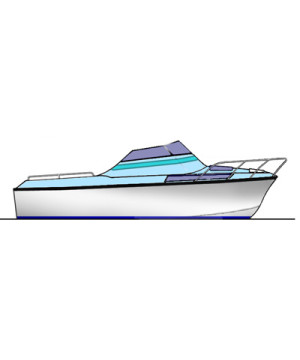

• Waverunner 20/22 - Planing Hull



The set of plans for this design are no longer for sale.



This page is for information only.  If you have bought one of these boats and require a set of plans we hold the complete set still.  We no longer offer it for sale as we no longer sell any planing hull forms.


Designed for fiberglass construction this was an excellent first time project for the fiberglass boat builder who wanted a small, high speed runabout. The plans came complete with large scale construction drawings and Full Size Patterns. The accommodation was our suggested use of the available space although many owners changed the layout to suit their own needs.  It was suitable for jet, stern drive or outboard and was very capable of thirty plus knots with a 150 hp engine. There were large scale plans and Full Size Patterns that enabled the builder to build the Waverunner 22 with maximum ease. There are no study plan set offered for this design. Just contact the office if you have, or have bought, a vessel built to this design and require information.

Waverunner 20   Moderate V

L.O.A.6.10 m20'   0"
BEAM2.33 m8'   3''
POWERStern Drive70 to 170 hp
Single or twin Outboardup to 100 hp






Waverunner 22  Moderate V

L.O.A.6.70 m22'   0"
L.W.L5.94 m 19'   6"
BEAM2.50 m8'   3''
DRAFT0.35 m1'   1"
FREEBOARD          Fwd0.98 m3'   2"
                                   Aft0.76 m2'   6"
CABIN HEIGHT      Max1.80 m6'   0"
                                   Min1.37 m4'   6"
POWERStern Drive100 to 250 hp
Single Outboard130 hp
Twin Outboard's40hp





Built in Norway in 1994 this Waverunner 22  is equipped with a
volvo penta 165 hp and is capable of doing over 30 knots.
